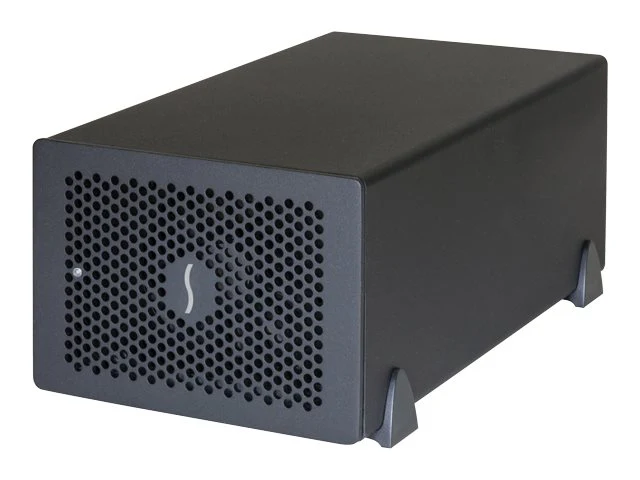

Sonnet Echo Express SE IIIe - System bus extender - 120 Watt

Basic Specifications

Manufacturer's Part Number

ECHO-EX-SE3E-T3

EAN

0732311012938

Manufacturer Warranty

2-year warranty

Product Type

System bus extender

Weight

1.18 kg

Product Description

Sonnet Echo Express SE IIIe - system bus extender

Model

Sonnet Echo Express SE IIIe

Dimensions (WxDxH)

16.5 cm x 27.9 cm x 11.7 cm

Power

Power adapter AC 100 - 240 V (50 - 60 Hz) 120 Watt Power Provided

General

Product Type

System bus extender

Width

16.5 cm

Depth

27.9 cm

Height

11.7 cm

Weight

1.18 kg

Miscellaneous

Cables Included

1 x Thunderbolt cable - external - 70 cm

Compliant Standards

RoHS

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Expansion / Connectivity

Expansion Slots

1 (total) / 1 (free) x PCI Express 3.0 x8 - half-length, full-height (x4 mode) ¦ 1 (total) / 1 (free) x PCI Express 3.0 x8 - half-length, full-height (x8 mode)

Interfaces

2 x Thunderbolt 3

Power

Power Device

Power adapter

Voltage Required

AC 100 - 240 V (50 - 60 Hz)

Power Provided

120 Watt

System Requirements

OS Required

Windows 10 64-bit Edition, Apple macOS Sierra 10.12.6 or later, Linux Kernel 5.0 or later

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

35 °C
