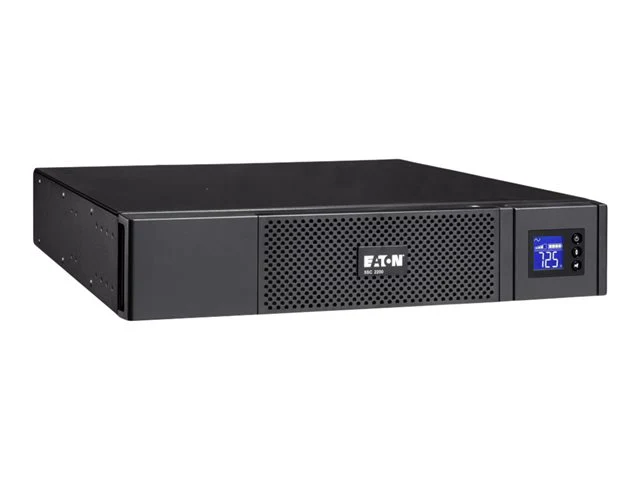

Eaton 5SC - UPS (rack-mountable / external) - AC 220/230/240 V - 1980 Watt - 2200 VA - 1-phase - RS-232, USB - output connectors: 9 - 2U - 19" - black

Basic Specifications

Manufacturer's Part Number

5SC2200IRTBS

EAN

3553340620355

Product Description

Eaton 5SC - UPS - 1980 Watt - 2200 VA

Colour

Black

Weight

26.938 kg

Input Connectors

1 x power IEC 60320 C20

Device Type

UPS - rack-mountable / external

Product Type

UPS

Networking

RS-232, USB

Battery

Lead Acid

Dimensions (WxDxH)

44.1 cm x 52.2 cm x 8.62 cm

Power Capacity

1980 Watt / 2200 VA

Output Voltage

AC 230 V + 6% / - 10%

Output connectors

8 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19

Run Time (Up To)

2 min at full load

Input Voltage

AC 220/230/240 V

Batteries Qty

4

Rack Size

19" - 2U

Input Wiring

1-phase

General

Device Type

UPS - rack-mountable / external

Height (Rack Units)

2U

Rack Size

19"

Colour

Black

Networking

Remote Management Interface

RS-232, USB

Expansion / Connectivity

Interfaces

1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232)

Environmental Parameters

Humidity Range Operating

0 - 90% (non-condensing)

Sound Emission

40 dBA

Dimensions & Weight

Width

44.1 cm

Depth

52.2 cm

Height

8.62 cm

Weight

26.938 kg

Miscellaneous

Rack Mounting Kit

Included

Features

LCD display

Compliant Standards

TUV, UL 1778, cTUVus, EN 62040-2, EAC, EN 62040-1

Battery

Quantity

4

Technology

Lead Acid

Power Device

UPS Technology

Line interactive

Input Voltage

AC 220/230/240 V

Input Voltage Range

AC 184 - 276 V

Input Wiring

1-phase

Frequency Required

45 - 55 / 55 - 65 Hz

Input Connectors

1 x power IEC 60320 C20

Power Output Connectors Details

8 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19

Output Voltage

AC 230 V + 6% / - 10%

Power Capacity

1980 Watt / 2200 VA

Output Waveform

Sinewave

Efficiency

97%

Power Factor (PF)

0.9
